PVC Flooring Fire Safety Guide: How to Select and Install SPC Floor Fire Resistance Solutions

SPC floor fire resistance is the cornerstone of safe commercial flooring. When specifying floors for offices, hotels, schools, or retail chains, fire-rated PVC not only meets strict building codes but also protects life safety, reduces insurance premiums, and minimizes property loss. This article explains, in practical terms, how the right fire-resistant SPC floor is engineered, tested, and selected to keep B2B projects compliant and cost-effective.

1. How Fire-Resistant SPC Is Engineered
Halogen-free formulations use phosphorus–nitrogen synergists that decompose endothermically at 250 °C, releasing non-flammable gases to dilute oxygen. ATH and magnesium hydroxide cut peak heat-release rates by up to 65 %. The multi-layer construction adds a 0.3–0.5 mm wear-layer co-extruded with flame retardants achieving B-s1-d0 under EN 13501-1 while a high-density PVC core (>1 800 kg/m³) limits flame spread to <100 mm in ISO 9239-1.

2. Certification & Testing Standards Explained
EN 13501-1 requires ≥ B-s1-d0 for offices and schools. ASTM E648 demands ≥ 0.45 W/cm² for corridors. NFPA 286 limits flame spread to ≤ 3 ft at 10 min. IMO FTPC Part 5 specifies Class 0 for hospitality. Always request the full test-report package plus VOC and slip data.

3. Selecting the Right Fire-Rated SPC Floor
High-occupancy exits need B-s1-d0, retail may use B-s2-d1, and warehouses target NFPA 286. Suppliers holding 60-day buffer stock and clear CE/fire labels cut audit lead-times.

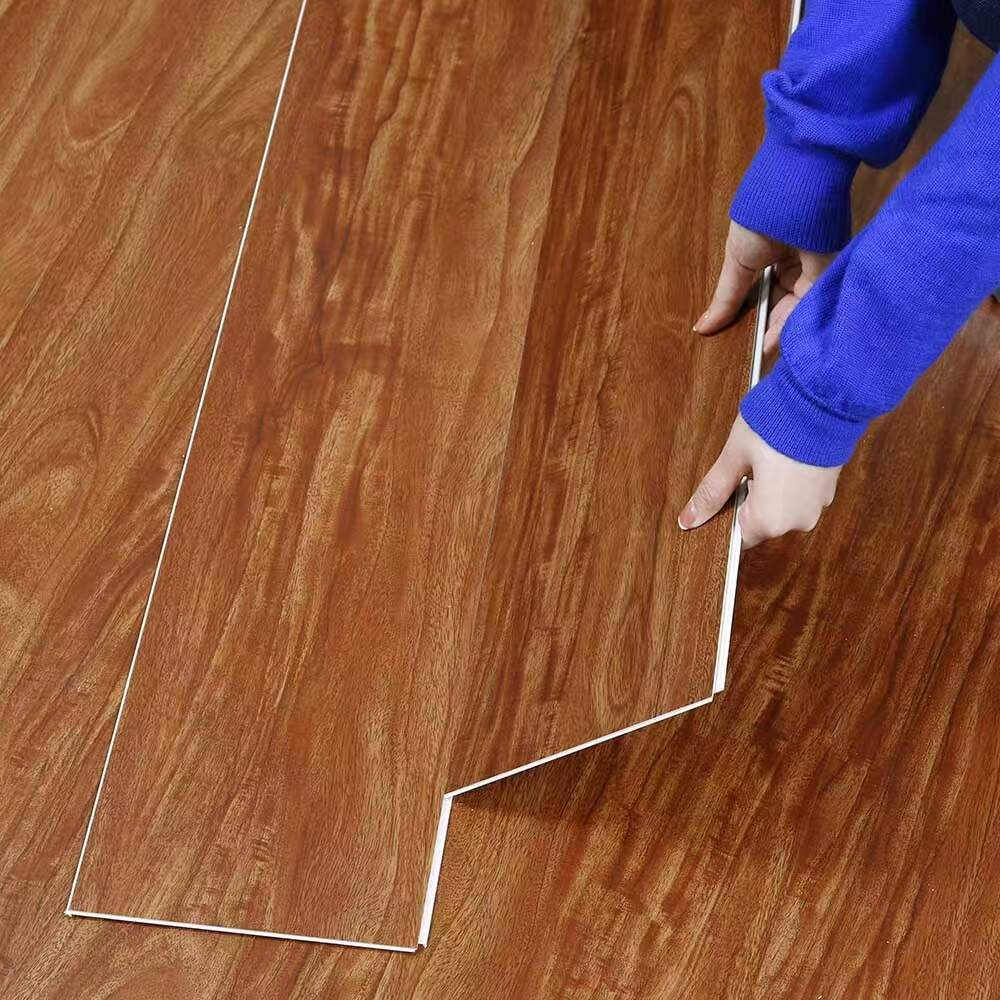

4. Installation & Maintenance
Keep subfloor moisture ≤ 2.5 % CM to prevent delamination gaps feeding flames. Use only solvent-free fire-rated adhesives (EN 13501-1 Class A/B). Annual IR scans (<0.05 °C delta) detect hidden hotspots.

5. ROI & Insurance Benefits
Properties with B-s1-d0 SPC floors report 8–12 % lower fire-insurance premiums and fire-rated floors become a key green-lease selling point.

6. Case Study
A 50 000 m² Shanghai office tower needed B-s1-d0 in 28 days for LEED Gold. 6 mm SPC with ATH additive met the rating and saved ¥280 k in delay penalties.

7. Procurement Checklist
Verify EPD ≤ 7 kg CO₂/m², confirm Euroclass B-s1-d0 or ASTM E648 ≥ 0.45 W/cm², specify wear layer ≥ 20 mil for 10-year commercial warranty, and review take-back programs with flexible MOQ for phased orders.

Ready to upgrade? Contact our fire-safety engineers for project-specific datasheets and sample kits.
